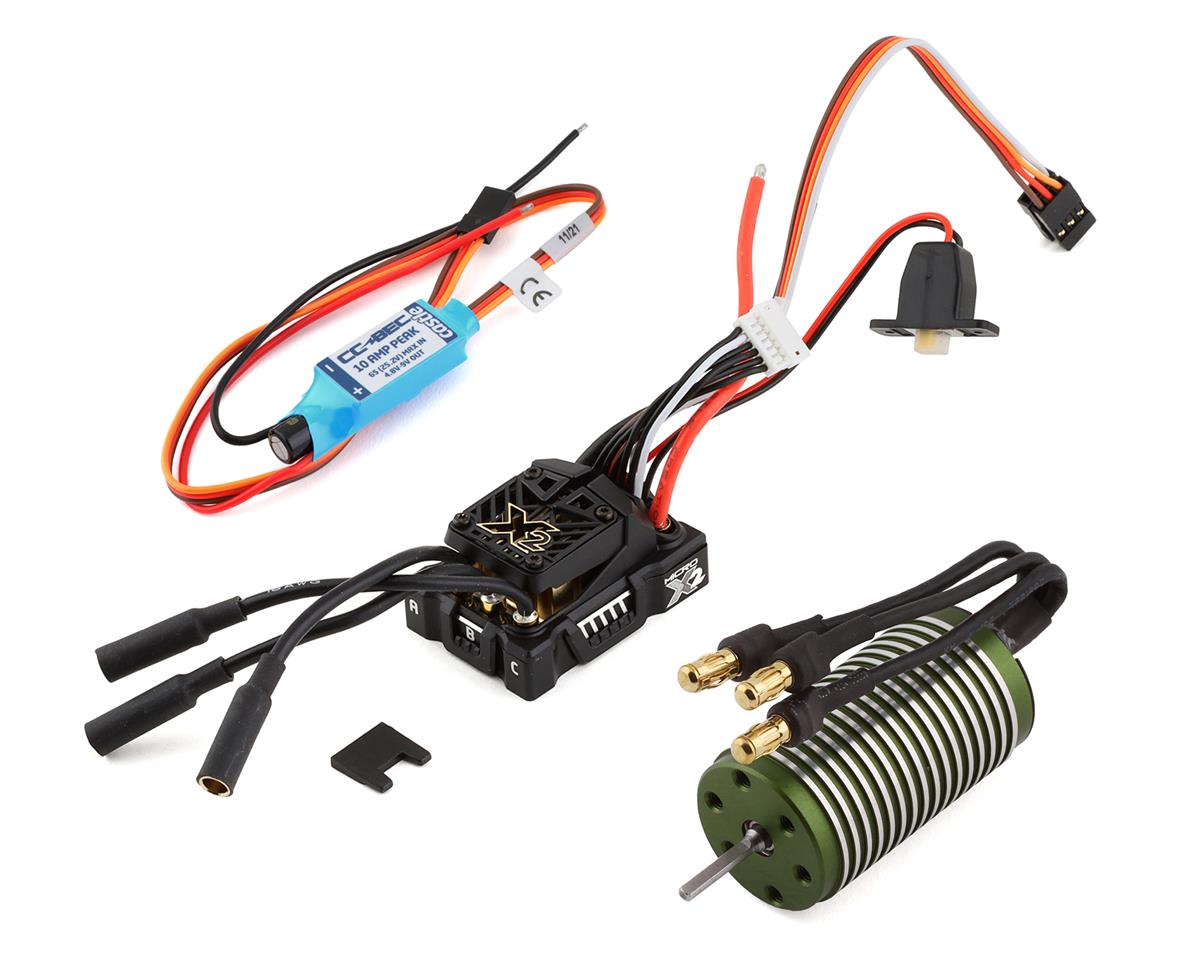

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo 8200Kv
- Regular Price
- $139.95
- Sale Price
- $139.95
- Regular Price
- Unit Price
- per
The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo with 0808-8200Kv motor is the perfect upgrade for 1:18 scale RC vehicles, up to 2S LiPo and weighing in at up to 1.5lbs.
Upgrade your 1:18th scale 2WD or 4WD vehicle with the Mamba Micro X2 ESC. With a maximum input voltage of 4s and innovative features like DATA LOGGING and CRYO-DRIVE TECHNOLOGY, this ESC runs cooler and more efficiently at partial throttle. Plus, it's waterproof* and offers SENSORED MOTOR SUPPORT for enhanced performance. Perfect for vehicles up to 2.25 lbs, and also suitable for low-speed operation in some 1:10th scale crawlers. Experience the power and durability of the Mamba Micro X2 today!
ESC Features:
- Input Voltage range 2S-4S
- Waterproof design
- Sensored Motor capable (with optional sensor harness)
- Convenient transmitter programming for six common adjustable settings
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake
- Audible Alerts that will notify you of possible issues with calibrations and error conditions
- Designed and manufactured in Olathe, Kansas and is backed by manufacturer 1-year warranty

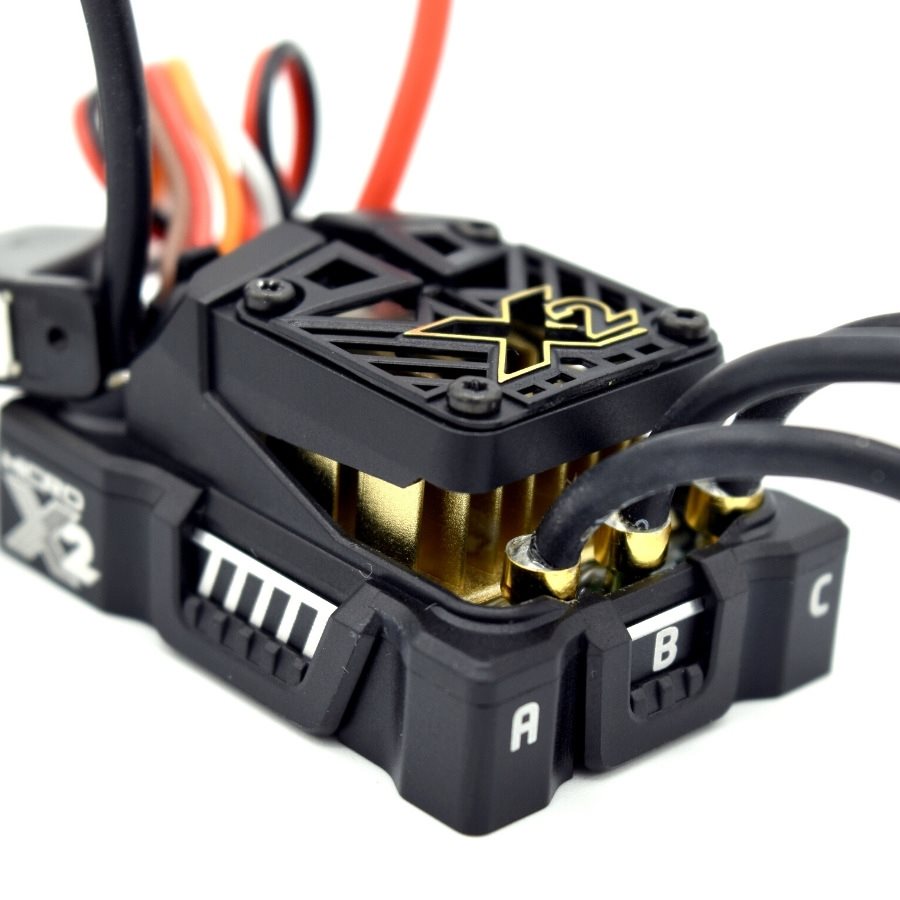

- ESC:
- Input Voltage Range: 2S-4S LiPo (16.8V Max)
- BEC: 2A Peak, 5.5v or 7.5v (5.5v default)
- Operating Environment: Waterproof* design allows for use in nearly any environment
- Brake: Proportional
- Reversible: Yes, but may be disabled
- On/Off Switch: Yes, waterproof
- Cooling Fan: Not included
- Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
- Weight (with wires): 1.66 oz / 47 grams
- Connectors: 3.5 mm bullets
- Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 2.25lbs.
- Recommended Motors:
- Castle 0808 4100Kv: Max Cells: 3S Lipo or 8 NiMH
- Castle 0808 5300Kv: Max Cells: 3S Lipo or 8 NiMH
- Castle 0808 8200Kv: Max Cells: 2S Lipo or 8 NiMH
- Max. Recommended Vehicle Weight: 2.25 lbs, with batteries, ready-to-run
- Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.

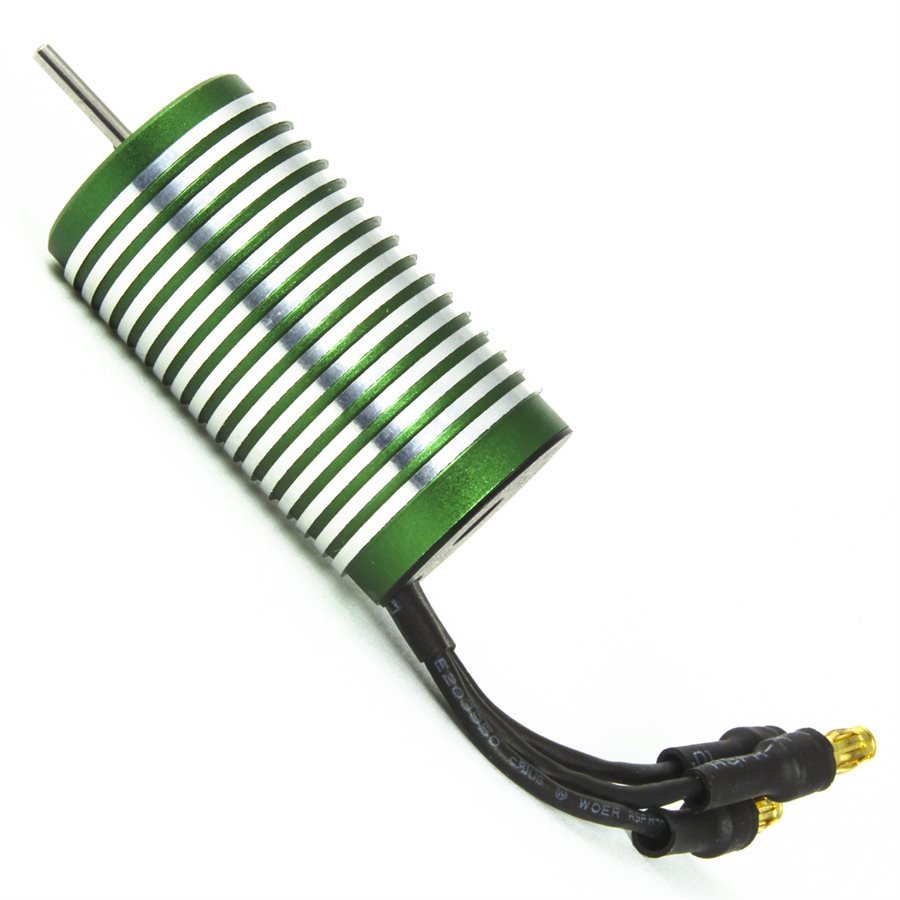

- Motor:
- Input Voltage Range: 2S LiPo, 4-7 cell NiMH
- Kv: 8200
- Max. RPM: N/A
- Size: Length: 1.5" (38mm)
- Diameter: 0.79" (20mm)
- Weight (w/wires): 1.8 oz. (50g)
- Shaft Size: Length: N/A
- Diameter: 0.08" (2mm)
- Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”
- Cooling Fan: No
- Connectors: 3.5mm male bullets
- Application Guidelines: Up to 2S LiPo and weighing in at up to 1.5lbs. Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)
- Max. Recommended Vehicle Weight: 1.5lbs
- Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
- Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
- Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
- Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
- Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
- Mamba Micro X2 ESC
- 0808-8200Kv Brushless Sensorless Motor
- Coupon for free Castle Link USB adapter
- Quick Start Guide
- Castle Decals
- Battery Connector: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
